VAS / VERTICAL ASSIST SYSTEM
A different
way up.

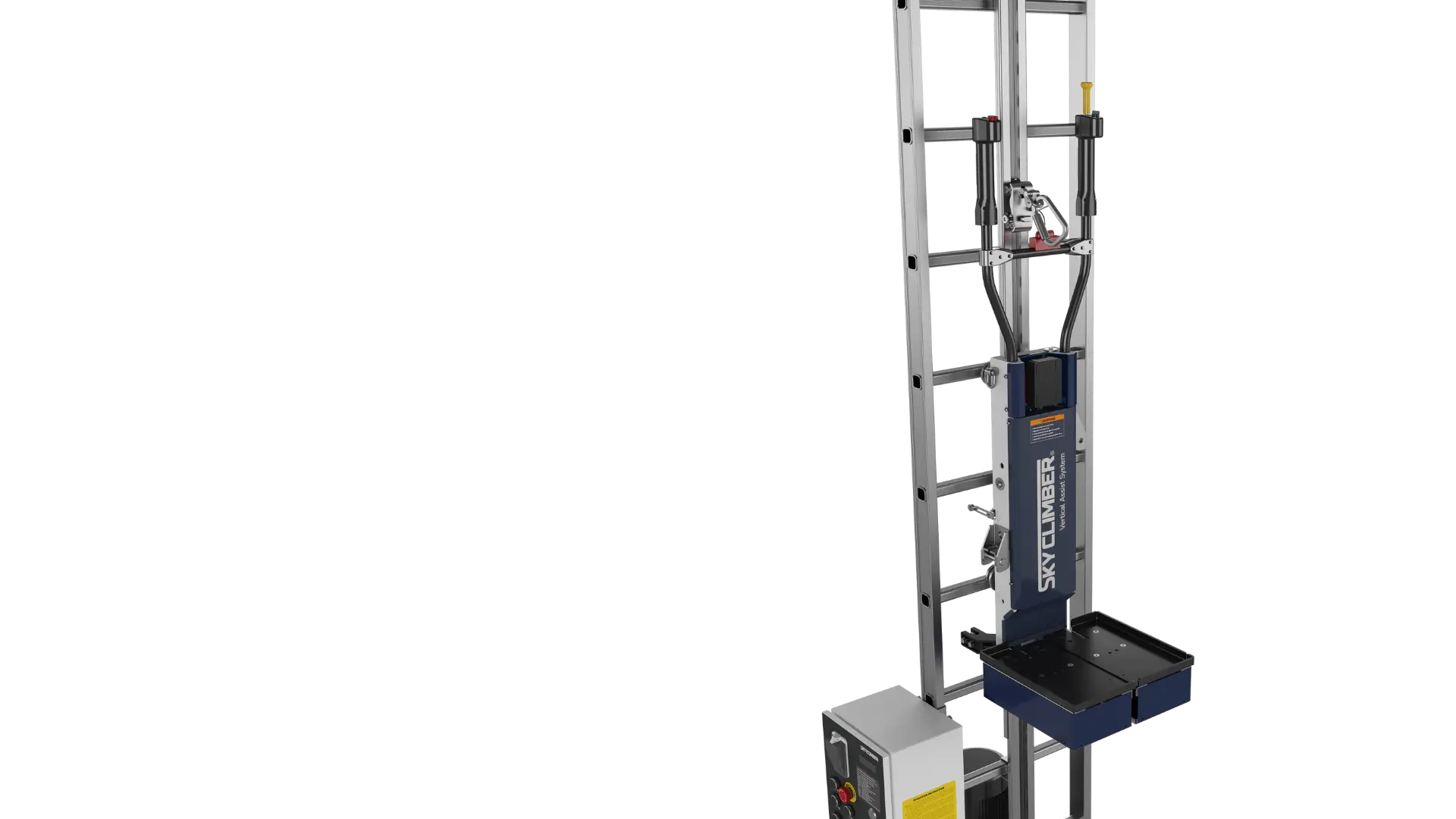

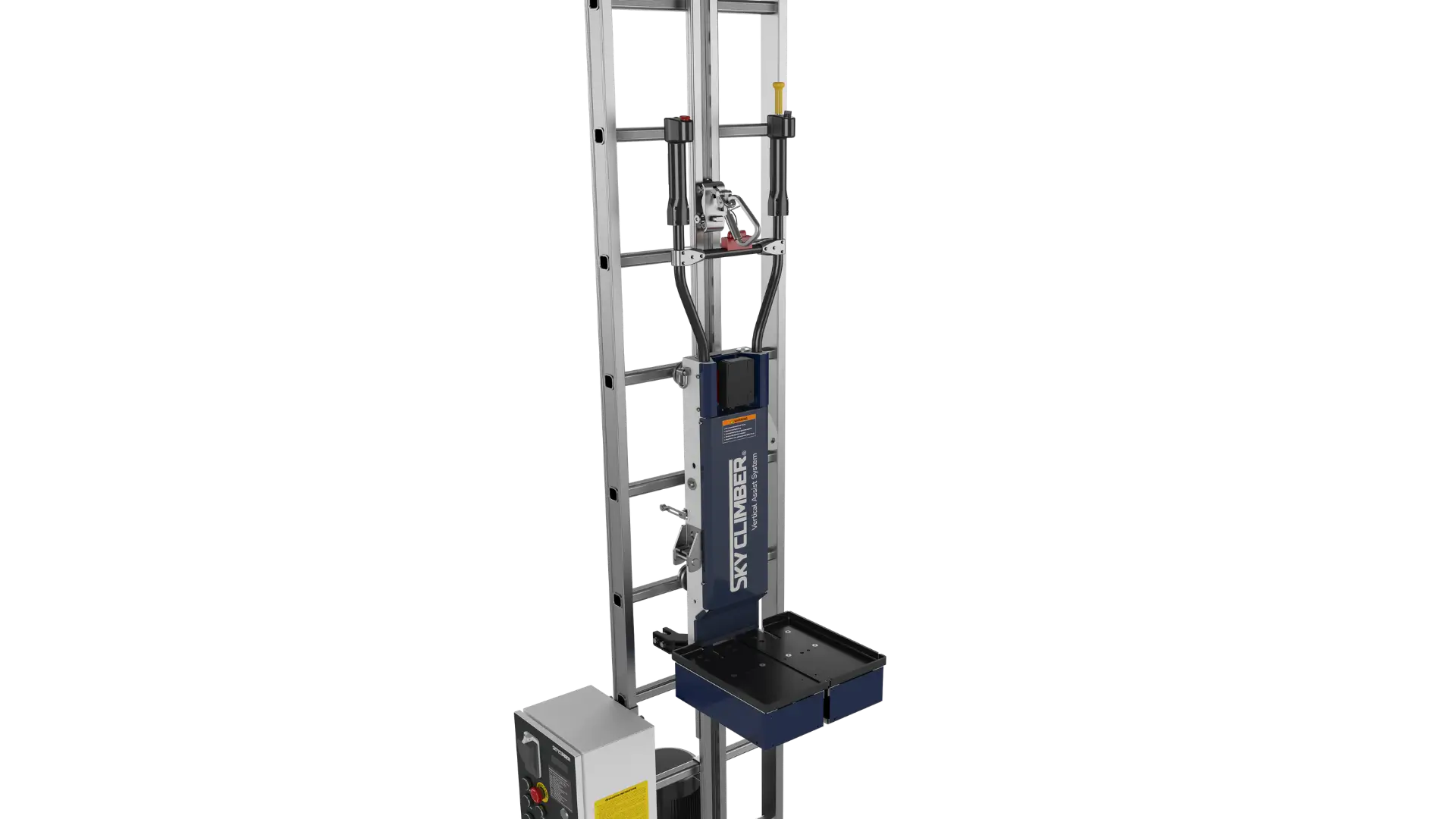

Powered, ladder-mounted access for wind turbine towers. Our Vertical Assist System carries a single technician between work levels, helping reduce the physical demand of repeated climbing.
Patented Sky Climber technology.
U.S. Patent No. 12,460,432 · Additional patents pending.
POWERED TOWER ACCESS / DESIGNED AROUND THE TECHNICIAN

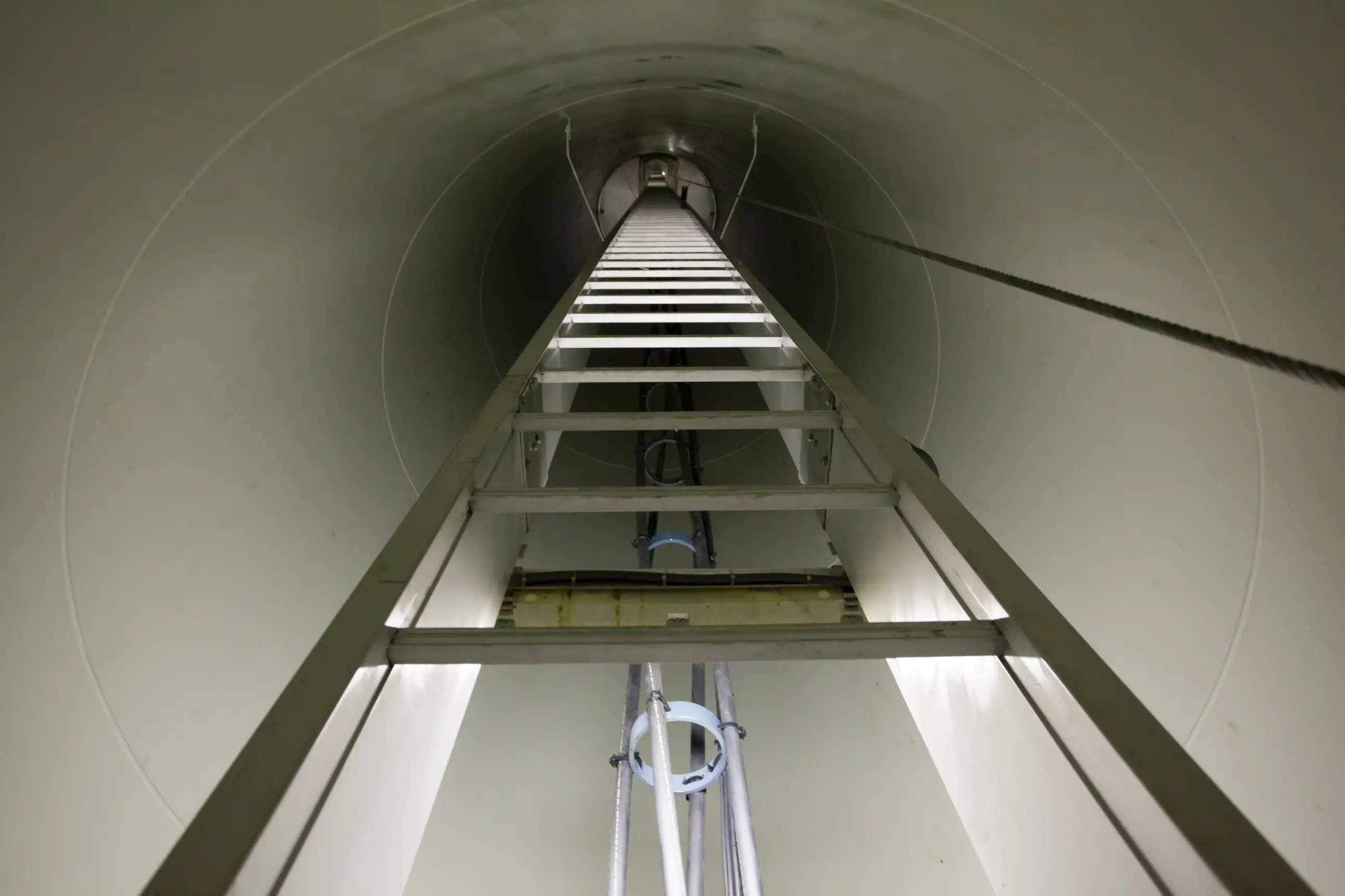

RETHINK THE CLIMB
Save the climbing effort.
Focus on the work.

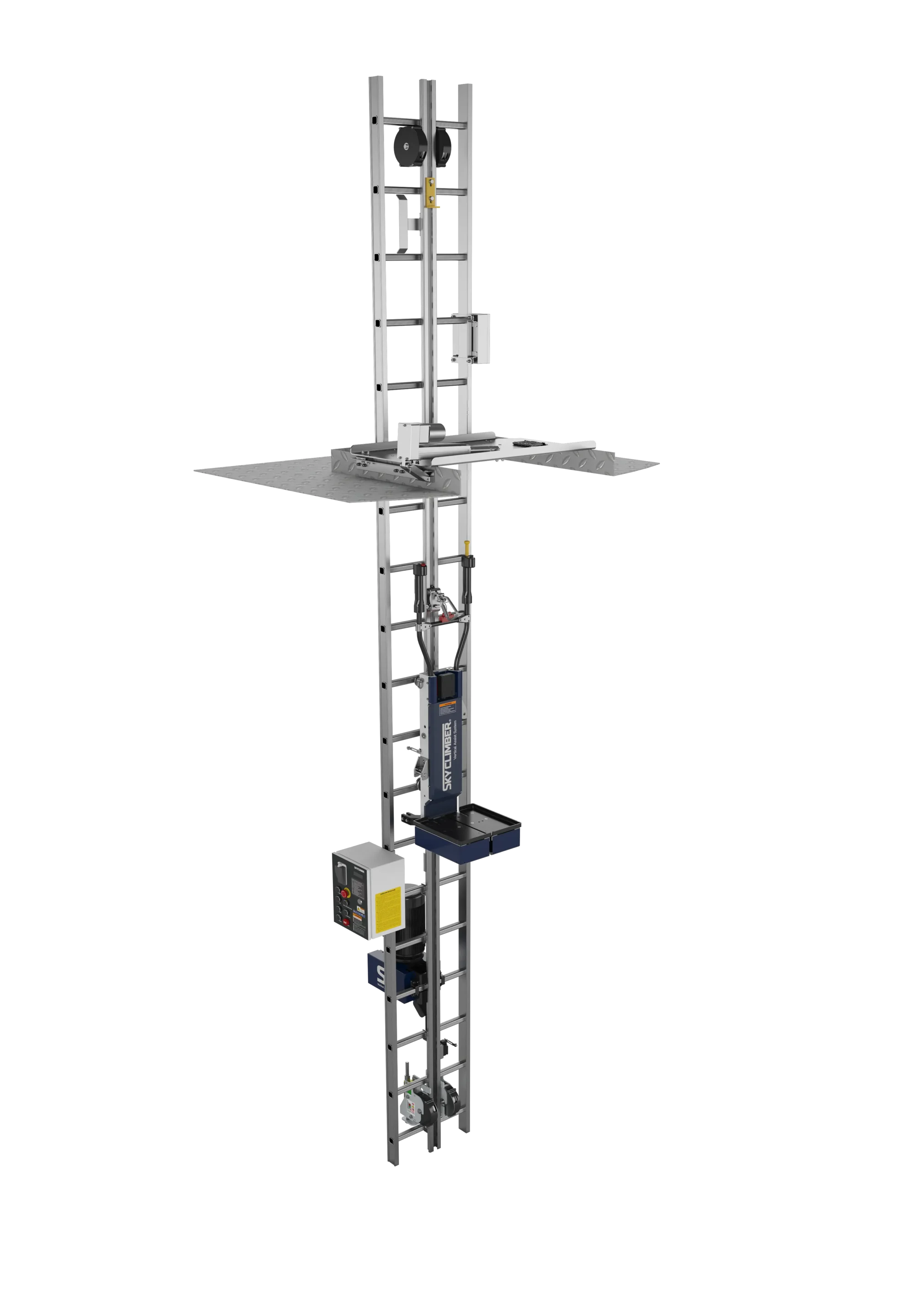

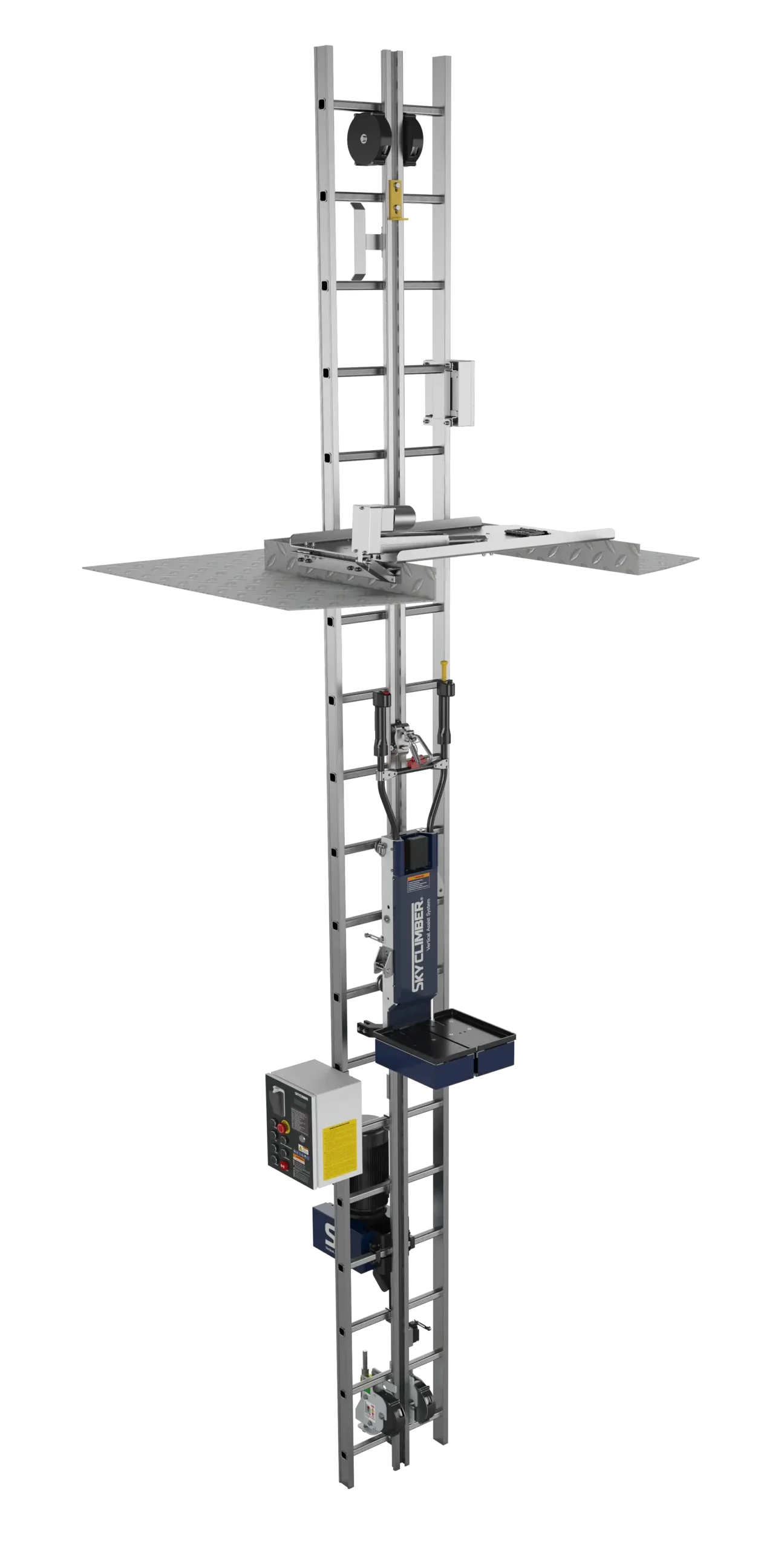

VAS is a permanent, single-technician ride-on access system installed along the tower ladder. Evaluate it for retrofit applications or new towers, with the installation matched to the ladder, platforms, hatches and available power.
01

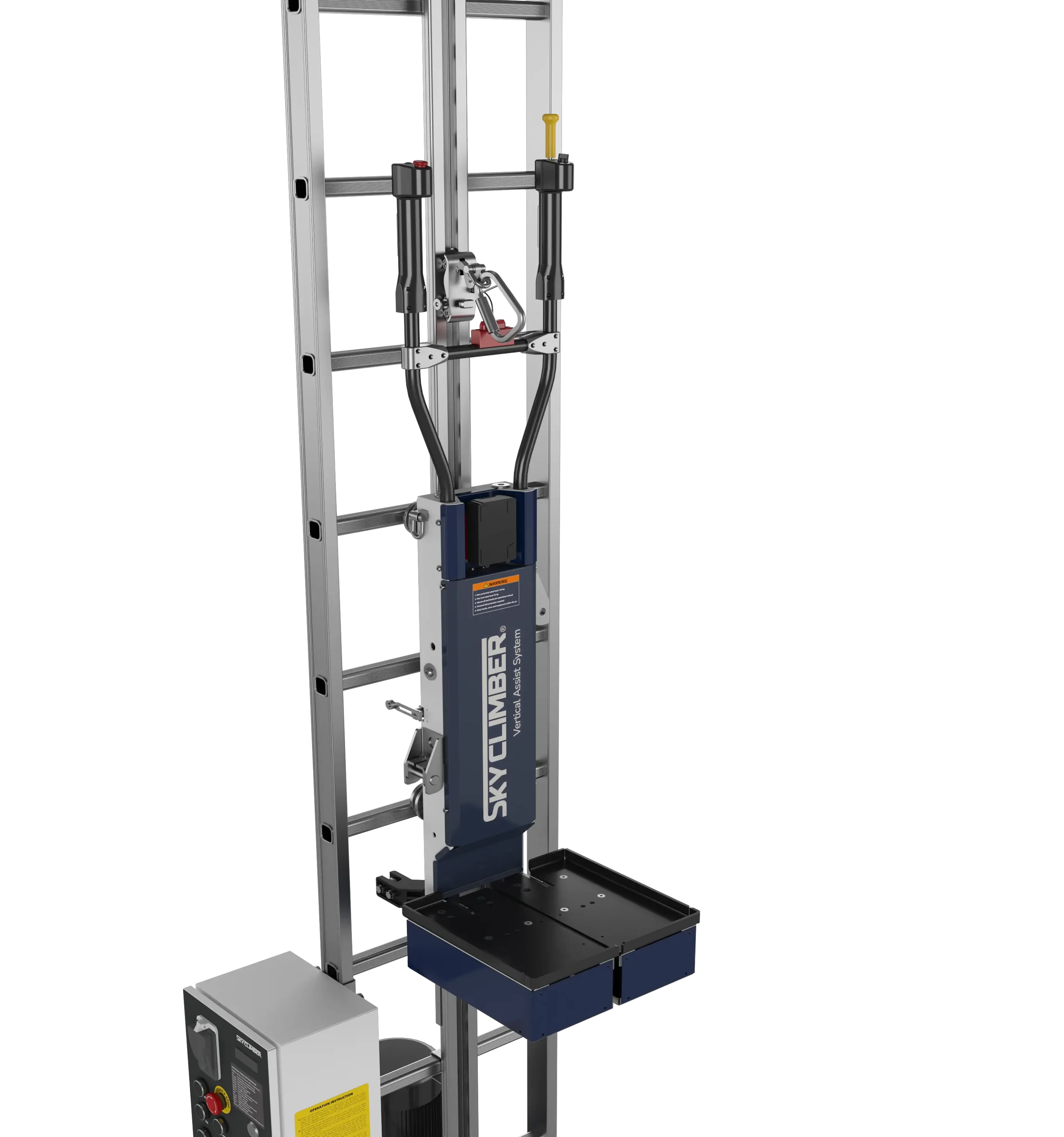

Powered Personnel Access
An operator-controlled platform moves along the tower ladder, providing a powered alternative to repeated manual climbing.
02
Layered Safety Features
VAS combines personal and independent platform fall-arrest provisions with emergency stops, obstruction detection and load monitoring.
03
Operator-Priority Controls
On-unit, remote and down-tower controls support access operation. Rider-priority control keeps the technician in command of the system.
04
Equipment Transport Mode
A separate freight mode supports loads up to 132 lb (60 kg). A 55 lb (25 kg) recommended capacity option is also available. Personnel and freight ratings apply to their respective modes and must not be combined.
OPTIONAL AUTO HATCH OPENER
A clearer path.
Between tower levels.

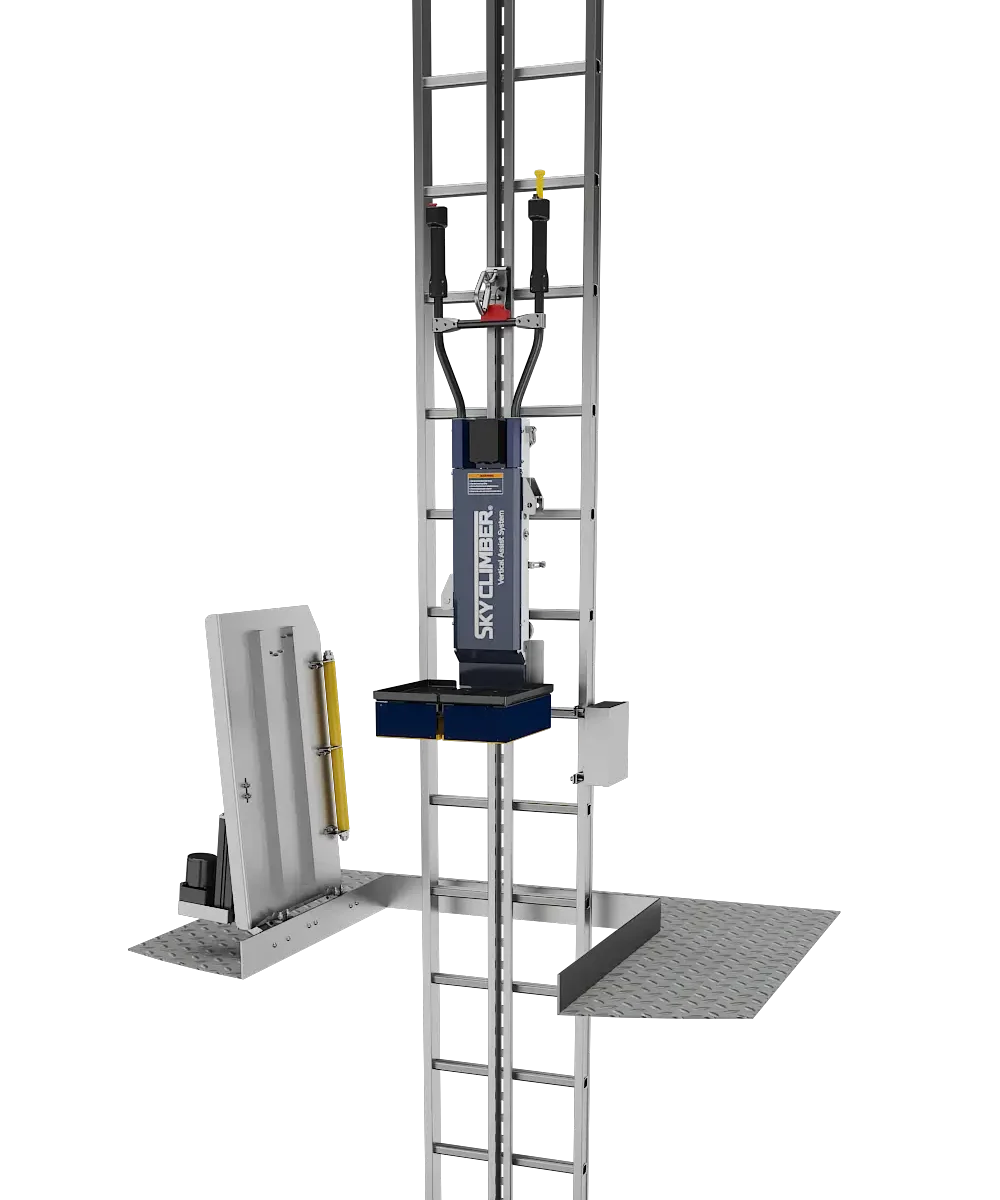

The optional Auto Hatch Opener (AHO) opens and closes platform hatches as part of the access system. Evaluate the hatch arrangement and tower interfaces with the VAS team to determine the appropriate installation.
- Optional hatch-opening integration01
- Tower and platform fit review02
- Retrofit and new-installation evaluation03
- Installation, training and service planning04
SYSTEM SPECIFICATIONS
Know the system.
Evaluate the fit.
Explore the specifications for our Vertical Assist System. Our team can help match the configuration to your tower and application.
PERSONNEL MODE
140 kg
Up to 310 lb rated load. Single-technician operation.
FREIGHT MODE
132 lb / 60 kg
Freight capacity. Recommended capacity option: 55 lb (25 kg).
TRAVEL SPEED
18 m/min
59 ft/min travel speed.
POWER SUPPLY
220 VAC
Single- or three-phase, 50/60 Hz. 400 V option available.
UNIT DIMENSIONS
468 × 431 × 1410
Width × depth × height in millimeters.
CONSTRUCTION
Aluminum + steel
Aluminum and powder-coated steel construction.
UL Certified. ANSI Tested. Our Vertical Assist System is certified by UL Solutions and tested to ANSI Z359.16-2016 qualification requirements. Follow the operating, fall-protection and maintenance requirements for your selected configuration.
TOWER ACCESS QUESTIONS
Consider the tower.
And the people using it.
Is VAS a ladder-mounted system or a tower elevator?
VAS is a powered, ladder-mounted ride-on access system for one technician. It is installed along the tower ladder rather than being a conventional enclosed tower elevator.
Can VAS be installed in an existing tower?
Retrofit applications can be evaluated, along with new-tower installations. The ladder, platform openings, hatches, available power and other tower interfaces need to be reviewed for the proposed configuration.
Does VAS replace personal fall protection or training?
No. Operators must follow the system instructions, applicable fall-protection requirements and training requirements. Powered access does not remove the need for appropriate personal protective equipment, inspections or maintenance.
How do we arrange a demonstration or application review?
Contact the VAS team with your tower configuration and intended use. The discussion can cover system fit, the optional Auto Hatch Opener, installation planning, training and support.
LET’S TALK TOWER ACCESS
Explore VAS.
For your turbines.
Discuss the tower configuration, retrofit opportunity or new installation. Our team can walk through system fit and arrange a product demonstration.
